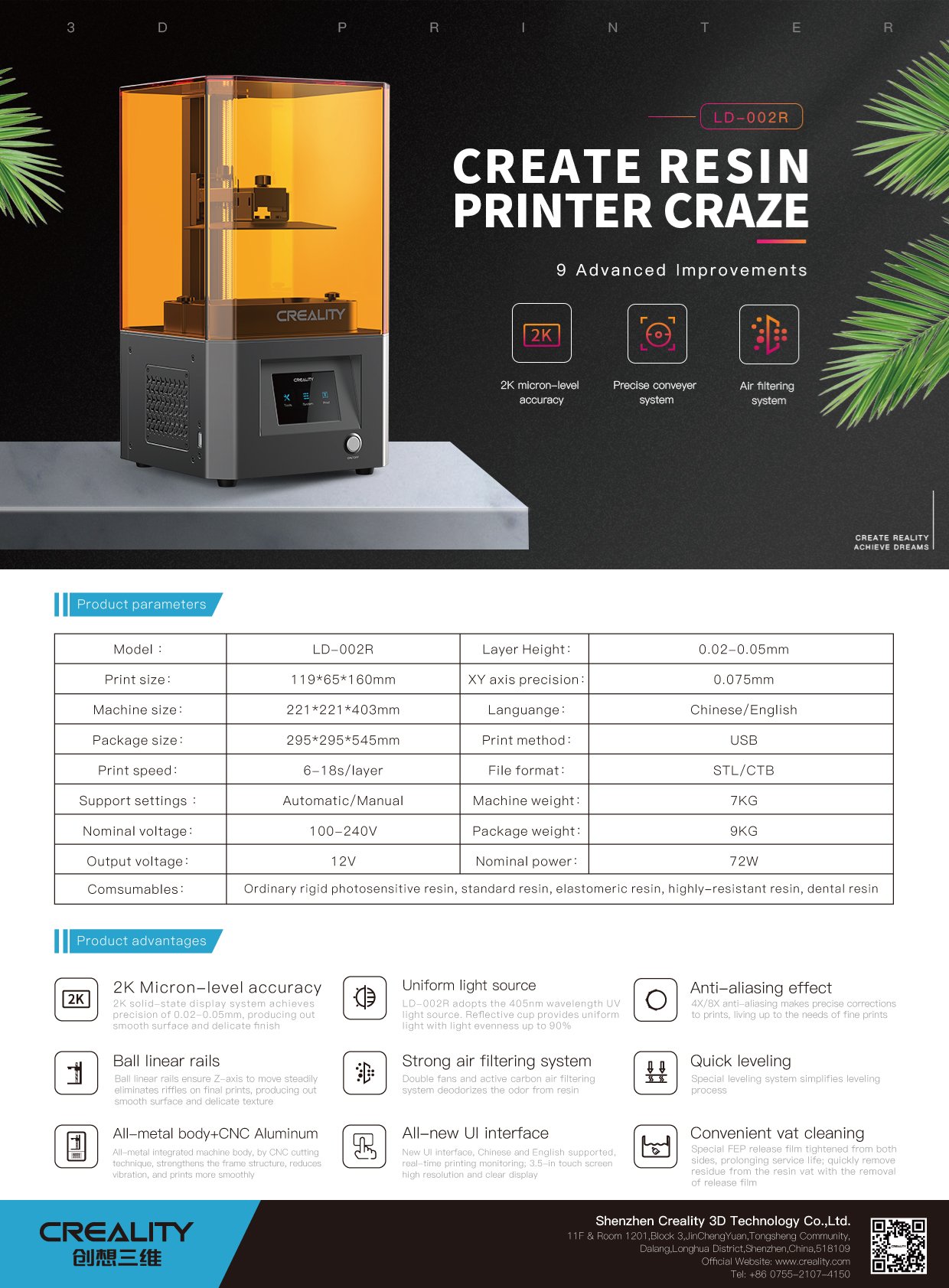

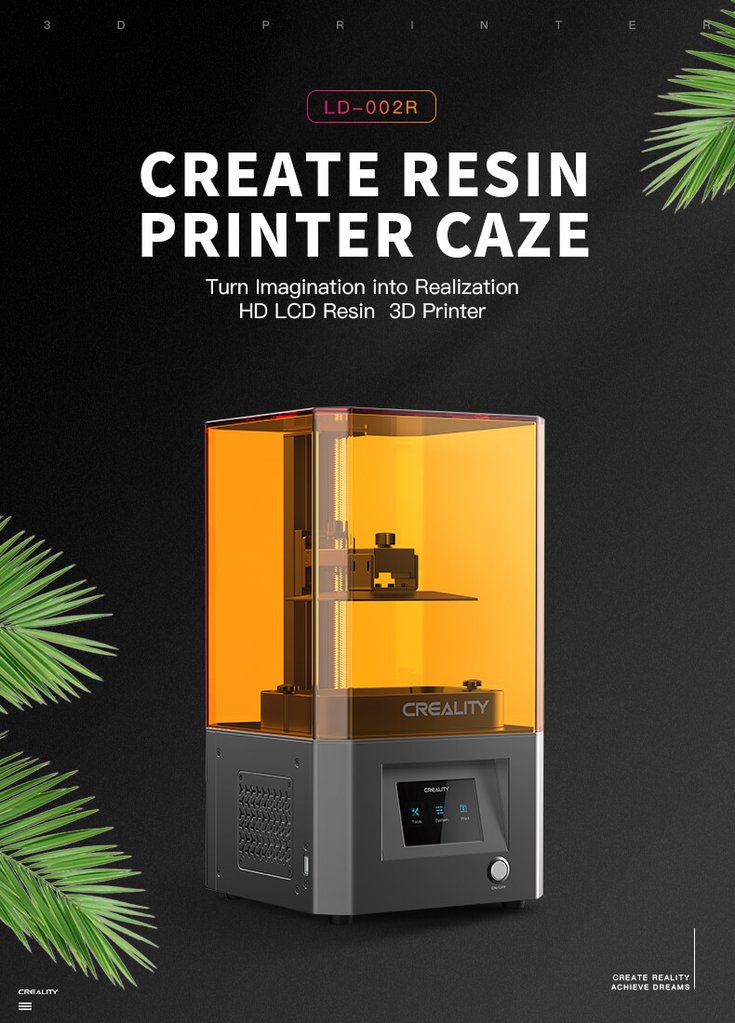

LD-002R LCD Resin 3D Printer Features

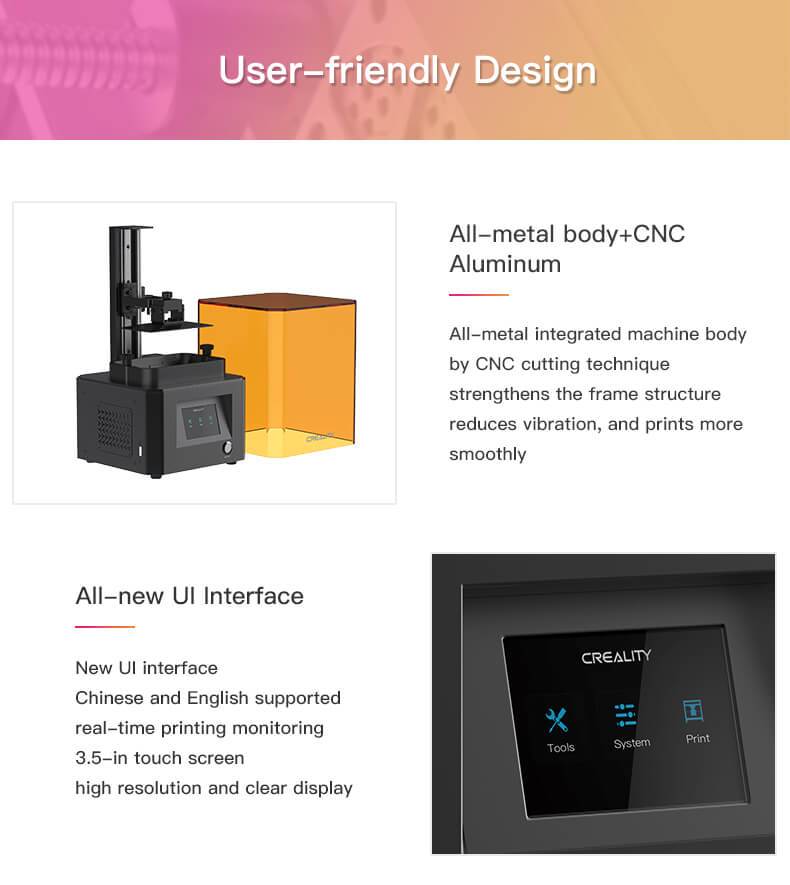

BUILD AND MOTION: Great emphasis is being placed on the LD-002R’s robust build quality and the components of its motion system, which is underpinned by a ball screw and single linear rail for the Z-axis.

ANTI-ALIASING: MSLA 3D printers use an LCD screen to mask an image of a layer over a UV light source. Comprised of hundreds of thousands of pixels, each a little rectangle itself, this tech leaves a telltale sign of the edges of these pixels on the print surface. Often barely visible, this effect can be lessened through the use of a digital processing called anti-aliasing, which interpolates between these edges, smoothing the effect out.

QUICK LEVELING: Quick leveling in the sense that the machine will lower the print plate to the vat for you, yes the LD-002R is quick leveling. Four hex screws feature on the print plate — loosen them before dropping the plate, and it will align to the level of the screen. Tighten and you’re good to go. Standard MSLA fare.

AIR FILTER: A small box at the rear of the print chamber contains a pouch of activated carbon. This should help to remove part of the stench of exposed resin from the air.
